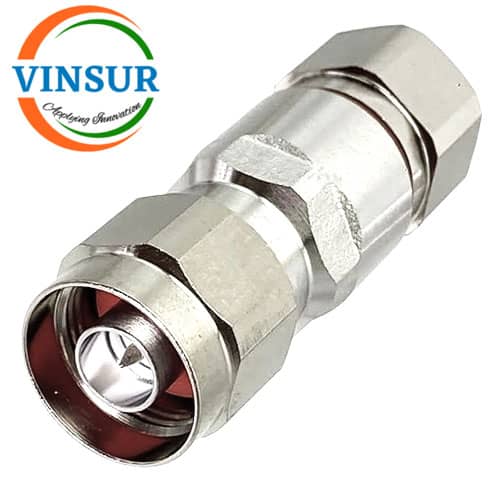

11111029 — RF CONNECTOR – 50OHMS , N MALE , STRAIGHT , CLAMP TYPE ,1/2 INCH FLEXIBLE FEEDER CABLE
- RF CONNECTOR: 50Ω
- N-TYPE MALE
- STRAIGHT
- CLAMP TYPE
- 1/2 INCH FLEXIBLE FEEDER CABLE
Click Here to download the datasheet
Description
N-Type connectors are designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance which includes models that support up to 18 GHz.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Type | N |
| Orientation | Straight |
| Contact Termination | Solder |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Brass/Silver Plating |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | ½ inch Cable |
| Max Frequency (GHz) | DC-6GHz |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
