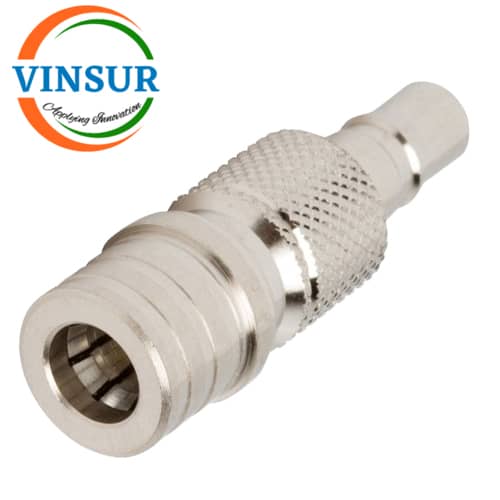

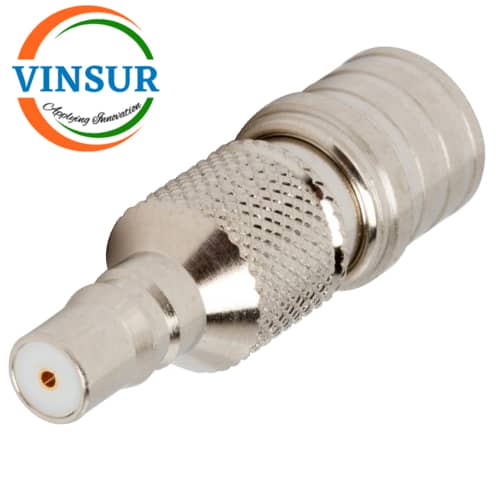

41K10K21 — RF ADAPTER – 50 OHMS, QMA MALE TO QMA FEMALE STRAIGHT ADAPTERS
- RF Adapters
- QMA Adapters
- QMA to QMA Adapters
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | QMA |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | QMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR | ≤1.2 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
