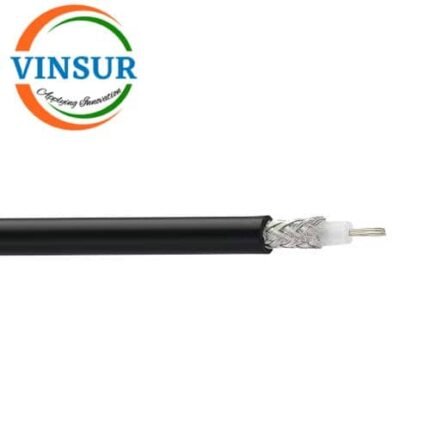

RG-58 COAXIAL CABLE (VSW-RG 58-CC)
- RF COAXIAL CABLE
- RG-58 COAXIAL CABLE
- 50OHMS CABLE
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Centre Conductor | Stranded Tinned Copper Braid | 19 x 0.18 |
| Dielectric | Solid PE | Ø 2.95 ± 0.15 |
| Braid | Stranded Tinned Copper Braid | Ø 3.50 ± 0.20 |
| Jacket | PVC Black | Ø 4.95 ± 0.20 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency | 3 GHz |
| Impedance | 50Ω |
| Velocity of Propagation | 66% |
| Capacitance | 100.0 pF/m |
| Min. Bending Radius | 25 mm |
| Nominal Weight | 0.040 Kg/m |
| Voltage Rating DC | 4 kVdc |
| Voltage Rating RMS | 2 kVrms |
| Peak Power Rating | 90 KW |
| Temp. Range | -25°C to +70°C |
| Attenuation vs Frequency | ||
| FREQUENCY | ATTENUATION | Unit |
| 10 | 4.5 | dB/100m |
| 200 | 22 | dB/100m |
| 400 | 32 | dB/100m |
| 1000 | 50 | dB/100m |
| 2400 | 79 | dB/100m |
