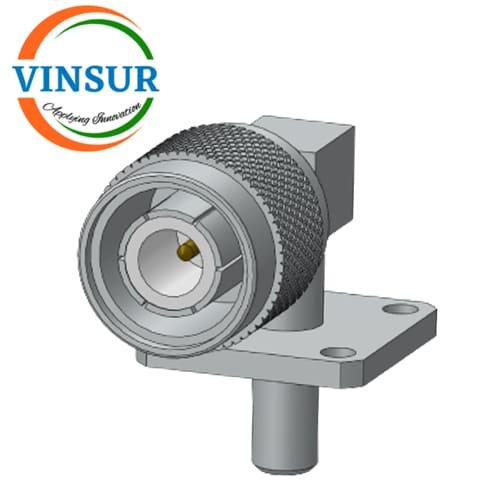

VSW-11212415 — RF CONNECTOR – 50OHMS , TNC MALE , RIGHT ANGLE , 4-HOLE FLANGE CRIMP TYPE , LMR200 CABLE
- RF CONNECTOR: 50Ω
- TNC MALE
- RIGHT ANGLE
- 4-HOLE FLANGE MOUNT
- CRIMP TYPE
- LMR-200 CABLE
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel Plating |
| Body Material | Brass |
| Contact Finish | Gold Plating |
| Contact Material | Brass |
| Contact Termination Style | Crimp |
| Insulator Material | PTFE |
| Cable Type | LMR200 |
| Gasket | Silicon Rubber |
| Mounting Feature | 4-hole flange mount |
| Max Frequency (GHz) | DC-6GHz |
| Polarity | Standard |
| VSWR | 1.30 Max |
| Dielectric with stand Voltage | 1000V |
| Insulation Resistance | ≥5000MΩ |
| Durability | ≥500 |
| Centre Conductor | ≤1.5mΩ |
| Outer Conductor | ≤1mΩ |
