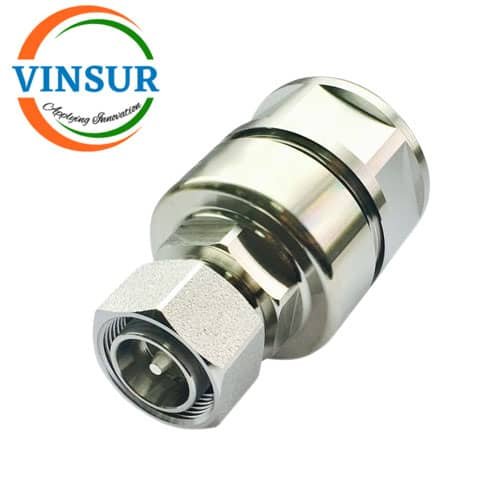

VSW-11J1192A — RF CONNECTOR – 50OHMS , 4.3-10 MALE , STRAIGHT , CLAMP TYPE , 7/8” CABLE
- RF CONNECTOR: 50Ω
- DIN CONNECTORS
- 7/ 8 Inch Feeder Cable
- Plug (MALE)
Click Here to download the datasheet
Description
| ENVIRONMENTAL & MECHANICAL SPECIFICATIONS | |
| Coupling Nut Torque | 5-15 Nm |
| Coupling Nut Retention Force | ≥450 N |
| Durability | ≥500 Cycles |
| Axial Holding Force | 30 N (Centre Conductor) |
| Working Temperature | -45°C to +85°C |
| ROHS | Compliance |
| Sealing Class | IP68 |
| Gauge Retention Force | (Centre Contact)
≥4.0 N (Outer Contact) |
| MATERIAL & PLATING | |
| PIN-Centre Contact | Tin Bronze/Silver Plated |
| Outer Contact & Body | Brass/Trimetal Plated |
| Dielectric | TPX |
| Gasket | Silicon Rubber |
| Nut | Brass/Nickel Plated |
