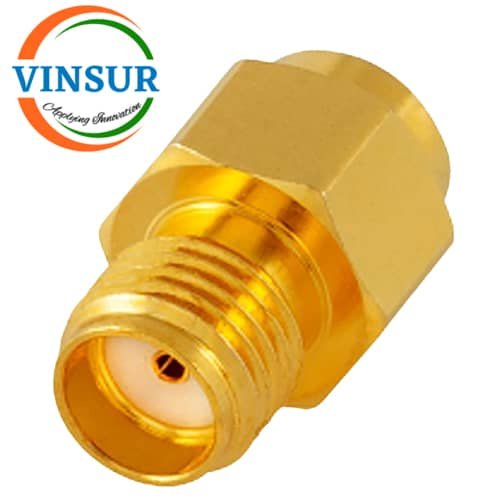

VSW-1W-18G-SMA-F–RF Termination Load (1W 18GHz SMA Female)

P/N:-VSW-1W-18G-SMA-F

RF Passive Device
RF Termination/Dummy load
SMA Female
DC-18GHz ,50Ω

Click Here to get Data Sheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

SPECIFICATION
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Gender	Jack
Impedance (Ohms)	50
Orientation	Straight
Power Handling	1watt
VSWR	1.20
Frequency	DC-18GHz
Temp (Max Degrees Celsius)	125°C
Temp (Min Degrees Celsius)	-55°C
