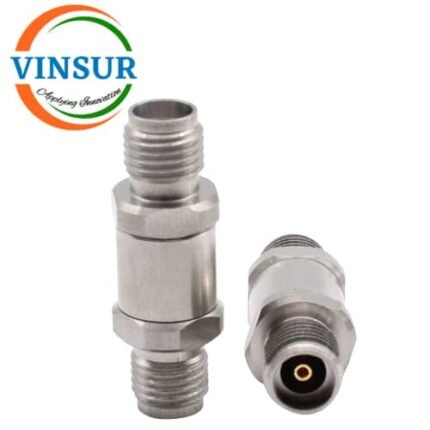

VSW-2.92-FS-3.5-FS-AD — RF ADAPTER – 50 OHMS, 2.92MM FEMALE TO 3.5MM FEMALE ADAPTER
- RF Adapters
- 2.92mm Adapters
- 2.92mm to 3.5mm Adapter
- Female to Female
- Straight
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 2.92mm |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Adapter Side 2 Series | 3.5mm |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Stainless Steel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 26.5 GHz |
| Dielectric withstanding | Voltage750v(rms) |
| Mating Cycles | 500 |
| VSWR | ≤1.25 |
| Min. Temp. (Celsius) | -45°C |
| Max. Temp. (Celsius) | +165°C |
