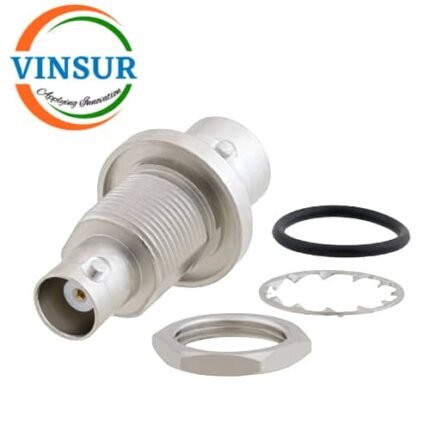

VSW-41Q2103210-AD — RF ADAPTER – 50 OHMS C-TYPE FEMALE STARIGHT BULKHEAD TO BNC FEMALE STARIGHT ADAPTERS
- RF Adapters
- C-type Adapters
- C-type to BNC Adapter
- Female to Female
- Straight Bulkhead
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | C-Type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | Bulkhead |
| Adapter Side 2 Series | BNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Silver/Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 11 GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
