| CONNECTOR SPECIFICATION | |
| Connector name | 2.92mm |
| Gender | Jack(Female) |
| Orientation | Straight |
| Mounting Type | Panel |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Body Style | 4 Hole |
| Number of Ports | Single |
| VSWR | ≤1.25 |
| Max Frequency | DC to 40GHz |
| Temperature Rating | -65°C to +165°C |

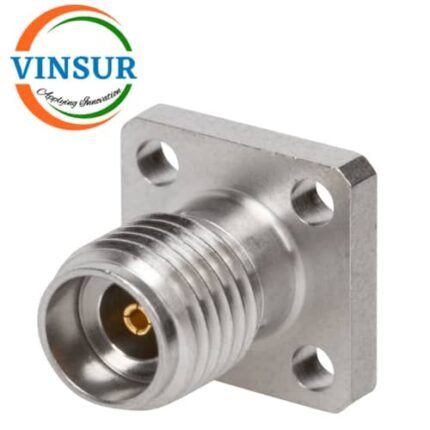

VSW-4H-PMC-2.92MM — RF CONNECTOR – 50OHMS , 2.92MM FEMALE , STRAIGHT, 4-HOLE FLANGE PANEL MOUNT CONNECTOR
- RF CONNECTOR: 50Ω
- 2.92mm
- Jack(Female)
- STRAIGHT
- 4 Hole Flange Mount
Click Here to download the datasheet
