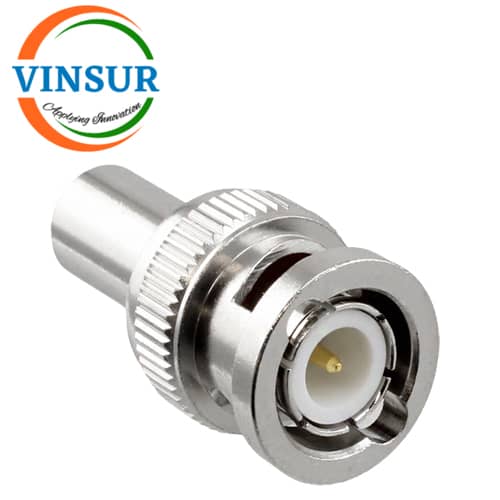

VSW-BNC-4W-4G — RF TERMINATORS BNC MALE, 4GHZ 5WATT

  • RF Passive Device
  • RF Termination Load
  • DC to 4Ghz
  • BNC Male

Click Here to get Datasheet

SKU: VSW-BNC-4W-4G Category: Tags: , , ,
Description
ELECTRICAL SPECIFICATION
Freq(MHz) Dc to 4Ghz
VSWR 1.25 max
Power Rating(W) 5W
Impedance 50 ohm
Connector BNC
Gender Plug(Male)
MECHANICAL SPECIFICATION
Connector Body Ternary alloy plated brass
Centre Contact Gold plated brass
Heat Sink Black anodized Aluminium
