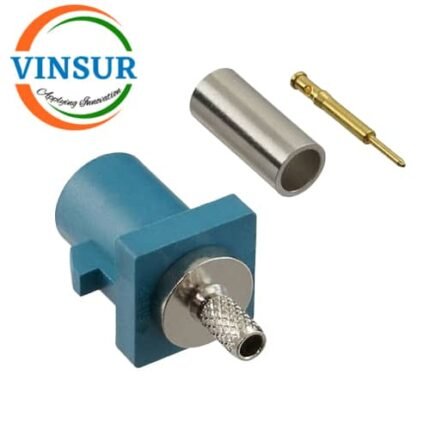

VSW-FAKRA-MS-316Z — RF CONNECTOR – 50 OHMS FAKRA SMB MALE STRAIGHT CRIMP TYPE FOR RG 316 CABLE(Water Blue)

SKU: VSW-FAKRA-MS-316Z

RF CONNECTOR: 50Ω
FAKRA MALE
STRAIGHT
CRIMP TYPE
RG-316 CABLE

Click Here to download the datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

CONNECTOR SPECIFICATIONS
Gender	Plug (Male)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50Ω
Body Finish	Nickel
Body Material	Zinc Die cast
Contact Finish	Gold
Contact Material	Brass
Contact Termination	Crimp
Insulator Material	PTFE
Cable Type	RG316
Max Frequency (GHz)	DC to 3GHz
VSWR	1.6 (-13dB) Max
Insertion Loss	0.45 dB
Polarity	Standard
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
FAKRA Key code	K – Curry
