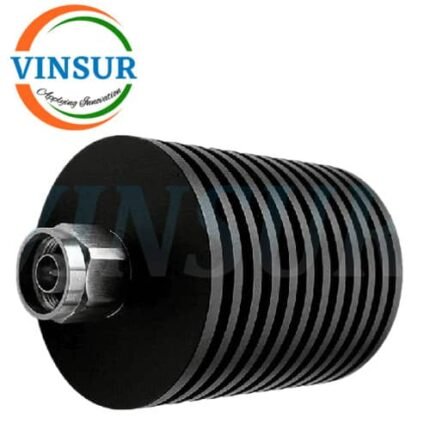

VSW-LPT100-740-155-NM — 100W LOW PIM TERMINATION LOAD (698-4000MHZ, -155DBC, N MALE)

  • RF Passive Device
  • RF Termination Load
  • 698-4000MHz
  • N Male or Customized

Click Here to get Datasheet

SKU: VSW-LPT100-740-155-NM Category: Tags: , , ,
Description
ELECTRICAL SPECIFICATION
Freq(MHz) 698-4000MHz
VSWR ≤1.30
PIM(dBc) -155dBc@2x43dBm
Power Rating(W) 100W (average power per port)
Connector N Male or Customized
Impedance (Ohms) 50
Colour Black-plated
Operating Tem(℃) -20°C to +65°C
