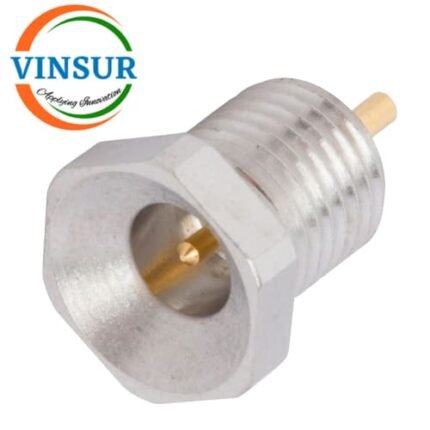

VSW-PSMP-FS1-PRP — RF CONNECTORES – 50 OHMS – PSMP FEMALE STRAIGHT FOR ROUND POST
- RF CONNECTOR: 50Ω
- PSMP FEMALE
- STRAIGHT
- PCB- ROUND POST
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB- Round Post |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Type | Round Post |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | ≤1.25 |
| Max Frequency (GHz) | DC to 10 GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | 165°C |
