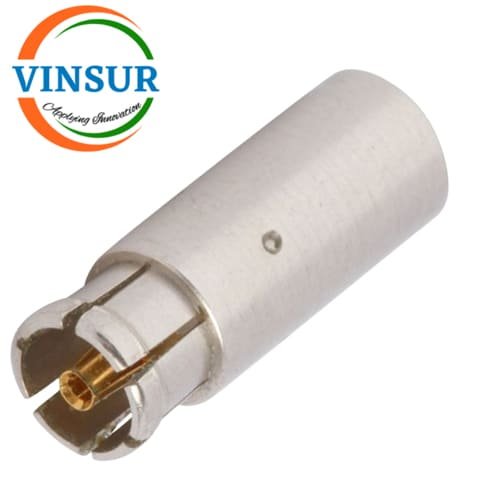

VSW-PSMP-MST-402 — RF CONNECTORES – 50 OHMS, PSMP MALE STRAIGHT SOLDER TYPE FOR RG402(0.141) CABLE
- RF CONNECTOR: 50Ω
- PSMP MALE
- STRAIGHT
- SOLDER TYPE
- FOR RG 402(0.141) CABLE
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR(Max) | ≤1.11 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
