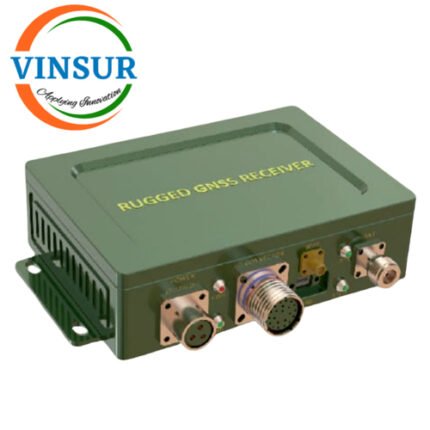

VSW-RGNSS-R2 — RUGGED GNSS RECEIVER WITH WOD
Features :
- Multi GNSS Receiver Supportng GPS / GLONASS / Galileo / BeiDou / IRNSS / QZSS L1, L2, L3, L5, E1, E5a, E5b, E6, B1, B2, B3 Band and S-Band.
- On Board Display to show Lat, Long, Alt, No.of Satellites, UTC/IST Time.
- Isolated Serial Ports
- 10/100/1000 Ethernet Interface
- Low power consumption
Description
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 170 mm x 120 mm x 50 mm |
| Weight | ~1.4 kg |
| Installation | FLANGE Mount |
| Cooling | Passive Conduction |
| Chassis | Aluminium alloy |
| Colour | NATO Green |
| MTBF | 20000 hours |
| ELECTRICAL SPECIFICATION | |
| Power Input | 9-36V DC Continuous |
| Power Consumption | < 3 Watts |
| Operating temperature | –40 °C to +80 °C |
| Storage temperature | –55 °C to +85 °C |
