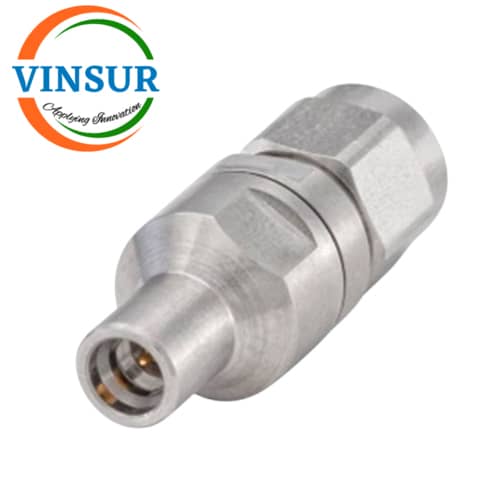

VSW250014-AD — ADAPTER – 50 OHMS, SMA MALE STRAIGHT TO SMP MALE STRAIGHT ADAPTER
- RF Adapters
- SMA Adapters
- SMA to SMP Adapter
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMA |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMP |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Conversion Type | Between Series |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 26.5GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +155°C |
