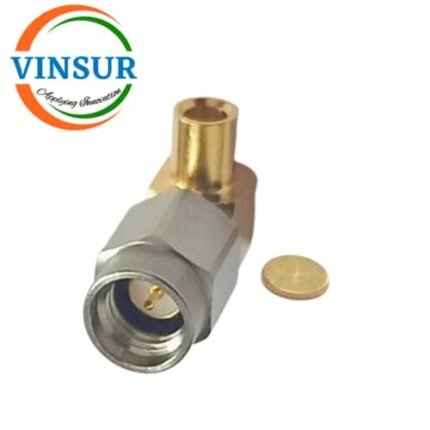

VSW250015-CN — RF CONNECTOR – 50 OHMS SSMA MALE RIGHT ANGLE SOLDER TYPE FOR RG402 CABLE
- RF CONNECTOR: 50Ω
- SSMA MALE
- STRAIGHT
- SOLDER TYPE
- RG-402 CABLE
Click Here to download the datasheet
Click Here to download the drawing
Description
SMA connectors are precision connectors for microwave applications up to 18 GHz. The extended frequency version operates with excellent return loss performances up to 26.5 GHz. There is a huge variety of applications for SMA connectors, as in telecom, test & measurement, instruments, avionics, etc.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Gold plating |
| Body Material | Brass , Gold plating |
| Coupling Nut | Brass, Nickel plating |
| VSWR | ≤1.2 |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Max Frequency Range | DC to 26GHz |
| Polarity | Standard |
| Thread Direction | Standard |
| Temp (Max Degrees Celsius) | 165° |
| Temp (Min Degrees Celsius) | -65° |
