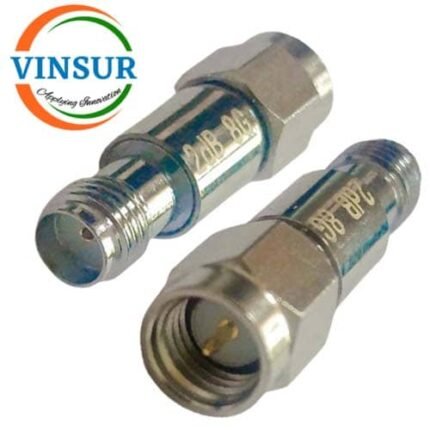

VSW250060-ATT — RF ATTENUATOR (2W,DC to 8GHZ ,2DB,SMA-MALE TO SMA-FEMALE)
- RF Attenuator
- Fixed Attenuator
- DC-8GHZ
- 2dB
- SMA Male To SMA Female
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Adapter Side 1 Series | SMA Plug (Male) |
| Adapter Side 2 Series | SMA Jack(Female) |
| Impedance (Ohms) | 50 |
| Power Input | 2Watt |
| Attenuation | 2dB |
| Attenuation Accuracy | Â 0.5 dB |
| VSWR | ≤ 1.25(Max) |
| Max Frequency | DC to 8GHz |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +125°C |
