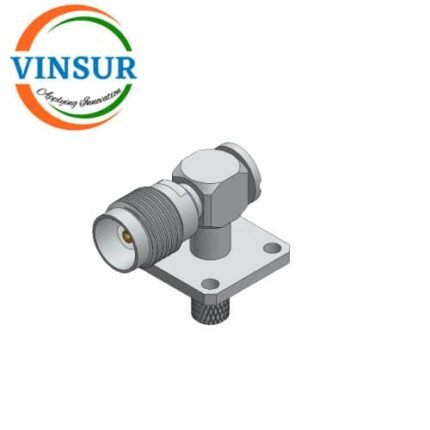

11222416 — RF CONNECTOR – 50 OHMS , TNC FEMALE , RIGHT ANGLE , 4 HOLE FLANGE , CRIMP TYPE , LMR-240 CABLE
- RF CONNECTOR: 50Ω
- TNC FEMALE
- RIGHT ANGLE
- 4-HOLE FLANGE
- CRIMP TYPE
- LMR-240 CABLE
Click Here to download the datasheet
Description
The TNC connector series is a miniature, threaded weatherproof series with a constant 50 Ω impedance and a frequency range of DC to 11 GHz. The TNC series shares its contact design with the BCN series, utilizing a threaded coupling nut for secure mating and higher frequency performance than the BNC.
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Right Angle |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Mounting Features | 4-hole flange |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.30 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
