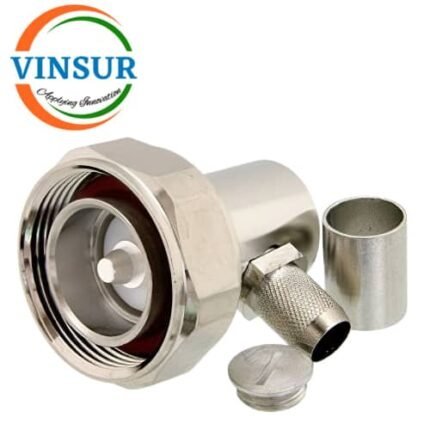

11D12017 — RF CONNECTOR – 50OHMS , 7.16 MALE , RIGHT ANGLE , CRIMP TYPE , LMR-400 CABLE
- RF Connector: 50Ω
- 7-16 Din
- Plug (Male)
- Right Angle
- LMR400 Cable
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Type | 7/16 |
| Orientation | Right Angle |
| Contact Termination | Solder |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR400 Cable |
| VSWR | ≤1.2 |
| Max Frequency (GHz) | DC-3GHz |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | +80 |
