CONNECTOR SPECIFICATIONS | |
Gender | Jack (Female) |
Type | 7/16 Din |
Orientation | Straight |
Termination Style | Cable – Clamp |
Impedance (Ohms) | 50 |
Body Finish | Nickel |
Body Material | Brass |
Contact Finish | Silver |
Contact Material | Brass |
Contact Termination | Solder |
Insulator Material | PTFE |
Cable Type | 1/2 inch flexible Cable |
Max Frequency (GHz) | DC-3GHz |
VSWR | 1:1:1 |
Min. Temp. (Celsius) | -40 |
Max. Temp. (Celsius) | +85 |

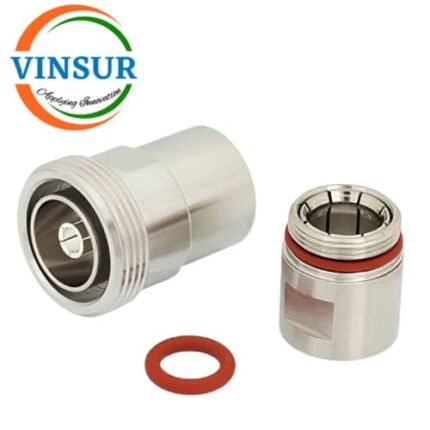

11D21029 — RF CONNECTOR – 50OHMS , 7/16 FEMALE , STRAIGHT , CLAMP TYPE , 1/2 INCH FLEXIBLE CABLE
- RF Connector: 50Ω
- 7-16 Din
- Jack (Female)
- Straight
- ½ inch Cable
Applications:
- Wireless Infrastructure
- Lightning Protection
- Base Stations
- Satellite Communications
- Antenna Systems
Click Here to download the datasheet
SKU: 11D21029
Categories: 7-16 Connectors, 7-16 for 1-2 inch cable
Tags: 7/16 din connector, connectors, Din male
