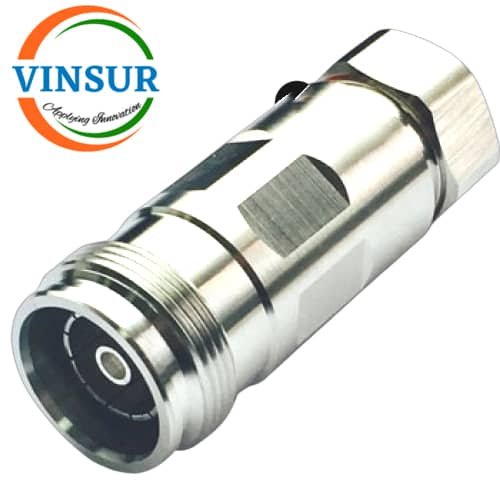

11E2102J — RF CONNECTOR – 50OHMS , 4.3-10 FEMALE , STRAIGHT , CLAMP TYPE , 1-2 INCH SUPER FLEXIBLE CABLE
- RF CONNECTOR: 50Ω
- 4.3-10(MIN DIN) CONNECTORS
- ½ INCH SUPER FLEXIBLE CABLE
- JACK (FEMALE)
Click Here to download the datasheet
SKU:
11E2102J
Categories: 4.3-10 Connectors, 4.3-10 for 1-2 Super Flex inch cable, Connectors
Tags: 4.3-10 connectors, connectors
Description
CONNECTOR SPECIFICATIONS | |
Gender | Jack (Female) |
Type | Mini DIN(4.3-10) |
Orientation | Straight |
Termination Style | Cable – Clamp |
Impedance (Ohms) | 50 |
Body Finish | Nickel |
Body Material | Brass |
Contact Finish | Silver |
Contact Material | Brass |
Contact Termination | Solder |
Insulator Material | PTFE |
Cable Type | ½ inch Super flexible Cable |
Max Frequency (GHz) | 6 |
VSWR | ≤1.20 |
Min. Temp. (Celsius) | -65 |
Max. Temp. (Celsius) | 165 |
