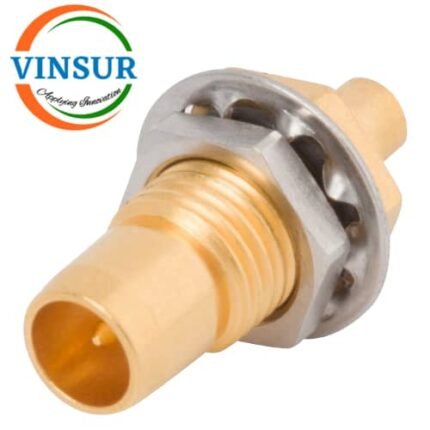

11V1123D — RF CONNECTOR — 50OHMS , BMA MALE , STRAIGHT , BULK HEAD REAR MOUNT , SOLDER TYPE , 0.141 CABLE
- RF CONNECTOR: 50Ω
- BMA Connectors
- Plug (Male)
- Straight
- Solder Type
- RG-402 CABLE
Applications:
- General Purpose Test
- Blind Mating
- Base Station
- Rack and Panel
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Stainless Steel |
| Body Material | Beryllium copper |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG402 |
| VSWR | 1:27:1 |
| Max Frequency (GHz) | DC to 18Ghz |
| Mounting Type | Panel |
| Body Style | Bulkhead |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
