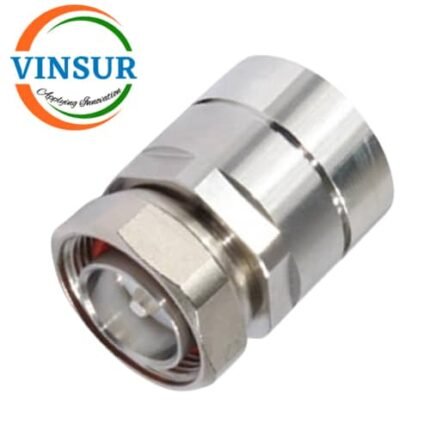

11W1102A — RF CONNECTOR – 50OHMS , DIN MALE , STRAIGHT , CLAMP TYPE , 7-8INCH FEEDER CABLE
- RF CONNECTOR: 50Ω
- DIN CONNECTORS
- 7/ 8 Inch Feeder Cable
- PLUG(MALE)
Click Here to download the datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Type | DIN |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | 7/ 8 Inch Feeder Cable |
| Max Frequency | DC To 6GHz |
| VSWR | ≤1.20 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
