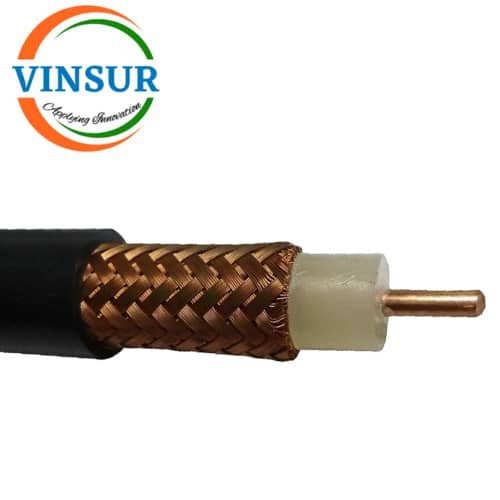

RG217U COAXIAL CABLE (VSW-RG-217/U-CA)
- RF COAXIAL CABLE
- RG217U COAXIAL CABLE
SKU:
VSW-RG-217/U-CA
Categories: Coaxial Cables, RF Coaxial Cables
Tags: RF COAXIAL CABLE, RG217U COAXIAL CABLE
Description
CABLE CONSTRUCTION | ||
Description | Material | Size |
Inner Conductor | Copper , 1 stand | 2.70 mm |
Dielectric Material | PE(Polyethylene) | 9.4 mm |
Shield Material | Copper braid(2) | 10.60 mm |
Jacket | PVC Black | 14.00mm |
ELECTRICAL SPECIFICATIONS | |
Impedance | 50 + 1 Ohms |
Maximum Operating Frequency | 1000 MHz |
Velocity of propagation | 66 % |
Operating voltage (AC) | 5200 Vrms |
Nominal capacitance | 30.8 (101.05) pf /ft (pf/m) |
Attenuation(dB/100 mtr.) | |
Freq 10MHz | 1.48 |
Freq 100MHz | 5.05 |
Freq 1000MHz | 20.90 |
Input power (CW) Max | |
10 MHz | 6000 watts |
100 MHz | 1200 watts |
1000 MHz | 260 watts |
