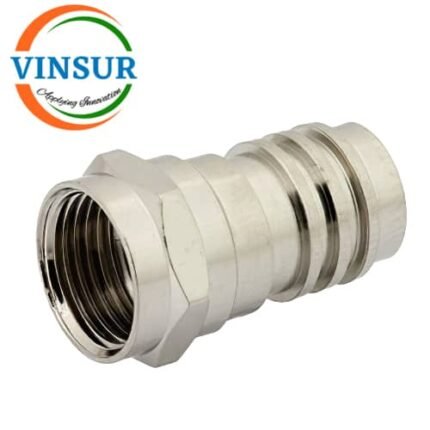

VSW-12B1101H — RF CONNECTOR – 75 OHMS , F-TYPE MALE , STRAIGHT , CRIMP TYPE , RG59, RG62, RG71 CABLE
- RF CONNECTOR: 75Ω
- F-TYPE MALE
- STRAIGHT
- CRIMP TYPE
- RG-59 CABLE
Click Here to download the datasheet
Click Here to download the Drawing
Description
The F-Type connector series is a durable, high performance threaded interface. Primary applications of the F-Type connectors are for cable television (CATV), set top boxes and cable modems.
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 75Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG59 |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +140°C |
