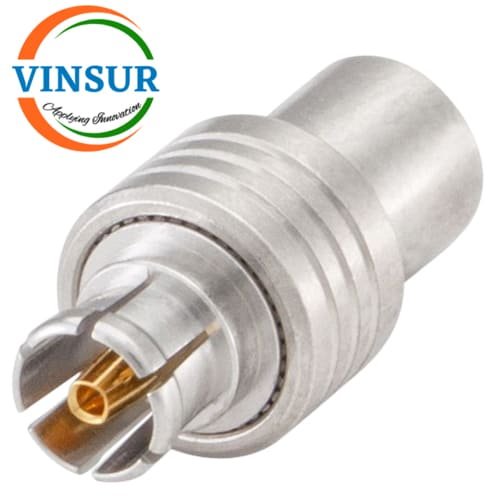

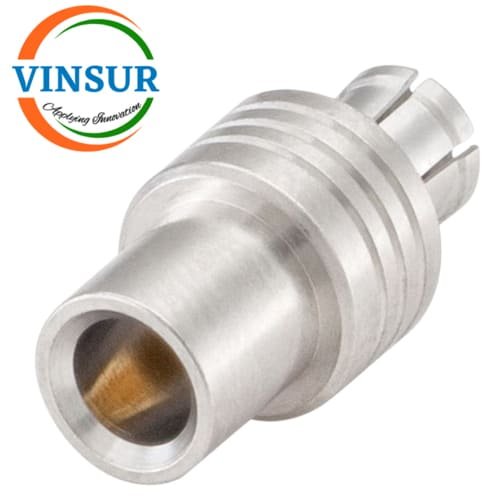

VSW-PSMP-FS-85 — RF CONNECTORES – 50 OHMS, PSMP FEMALE STRAIGHT SOLDER TYPE FOR RG 0.085 CABLE
- RF CONNECTOR: 50Ω
- PSMP MALE
- STRAIGHT
- SOLDER TYPE
- FOR RG 405(0.086) CABLE
Click Here to download the datasheet
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Stainless Steel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG0.085 |
| Max Frequency (GHz) | DC to 10GHz |
| Insertion loss | ≤0.1 dB |
| Power handling @20°C, sea level VSWR(1.0) | ≤200W @2.2GHz |
| Mating Cycles | ≥100 |
| Return loss | ≥25dB |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
| Working Voltage | 335Vrms |
| Center contact resistance | ≤3mΩ |
| Outer contact resistance | ≤2mΩ |
