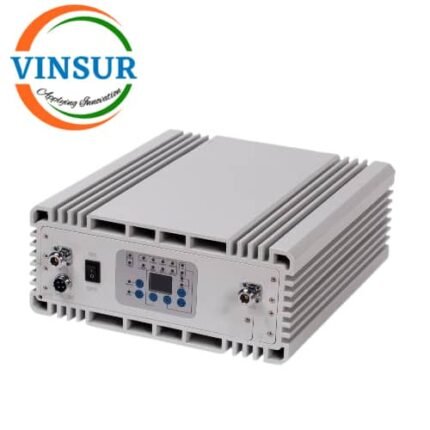

VSW250020-RP — 900&1800&2100&3500MHz Quad Wide Band Pico

SKU: VSW250020-RP Category: RF REPEATERS Tags: 900&1800&2100&3500MHz, RF Passive Device, RF Repeater

Description

SPECIFICATION
System		GSM/UMTS/LTE900	DCS/LTE1800	UMTS/LTE2100	5GNR TDD-3500
Frequency Range	Uplink	890~915MHz	1710~1785MHz	1920~1980MHz	3400~3600MHz
	Downlink	935~960MHz	1805~1880MHz	2110~2170MHz	3400~3600MHz
Output Power	Uplink	15±2dBm	15±2dBm	15±2dBm	15±2dBm
	Downlink	20±2dBm	20±2dBm	20±2dBm	20±2dBm
Maximum Gain		70±3dB	70±3dB	70±3dB	70±3dB
AGC&MGC Range			≥20dB
Noise Figure			≤ 8dB
VSWR			≤2.4
Spurious Emission			9KHz~1GHz:≤ -36dBm
			1GHz~12.75GHz:≤ -30dBm
Group Delay			≤ 1.5μs
I/O Impedance			50 Ω
RF Connector			2*N-Female
Power Supply			AC100~240V, 50/60Hz
Dimensions			318265113mm
Weight			10kg
Alarm Monitoring System			Alarm for uplink self-oscillation
Isolation Detection			Isolation check during boot time
Indication LED			Power supply, Alarm, State
Operating Temperature			-10 ~ +45 °C
Application			Indoor(IP30)
Relative Humidity Range			≤85%
Mounting			Wall Mounting
