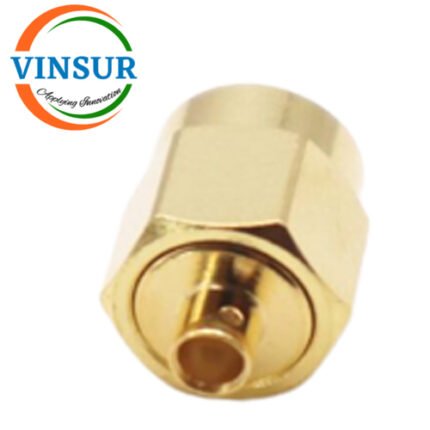

VSW-1151193C-27G — RF CONNECTOR – 50OHMS , SMA MALE , STRAIGHT , SOLDER TYPE , RG405(0.86) CABLE
- RF CONNECTOR: 50Ω
- SMA MALE
- STRAIGHT
- SOLDER TYPE
- RG-405(0.86) CABLE
Click Here to download the datasheet
Description
| Type | RF Connector |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Brass, Gold plating |
| Body Material | Gold plating |
| Coupling Nut | Brass, Gold plating |
| VSWR | 1.3:1 max |
| Insulator Material | PTFE |
| Cable Type | RG405(0.86) |
| Max Frequency (GHz) | DC to 27GHz |
| Polarity | Standard |
| Thread Direction | Standard |
| Insulation Resistance | ≥5000MΩ |
| Dielectric withstand voltage | 335V |
| Mating cycles | 500 |
