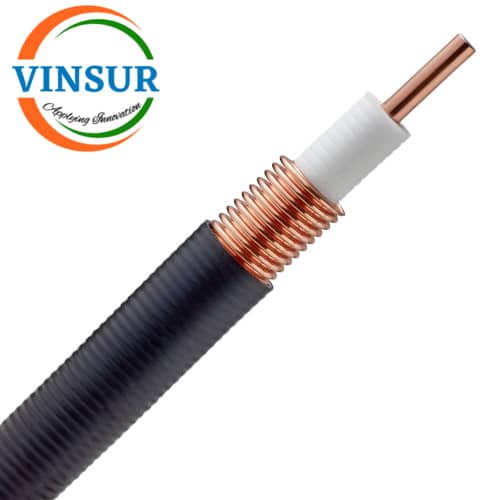

½ Inch Super Flex Coaxial Cable (VSW-1/2-SFC)
- RF COAXIAL CABLE
- ½ INCH SUPER FLEX COAXIAL CABLE
Description
| CABLE CONSTRUCTION SPECIFICATIONS | ||
| DESCRIPTION | MATERIAL AND PLATING | DIMENSION (MM) |
| Inner Conductor | Copper-Clad Aluminium Wire | 3.60 mm |
| Dielectric | Physical Foam Polyethylene | 8.70 mm |
| Outer Conductor | Helical Copper Tube | 12.00 mm |
| Jacket | Black PE | 13.30 mm |
| ELECTRICAL SPECIFICATION | |
| Impedance | 50±1 Ω |
| Cut-off Frequency | 12.5 GHz |
| Shielding Effectiveness | >120 dB |
| Insulation Resistance | 5000 MΩ•km |
| Velocity | 83% |
| RF Peak Voltage | 1.13 kV |
| Peak Power Rating | 19 kW |
| Capacitance | 80.0 pF/m(24.4 pF/ft) |
| VSWR | |
| 800MHz -1000MHz | ≤ 1.10 |
| 1700MHz -2200MHz | ≤ 1.13 |
| 2200MHz – 4000MHz | ≤ 1.15 |
| MECHANICAL SPECIFICATIONS | |
| Single Bending | 25 mm |
| Repeated Bending | 50 mm |
| Minimum Number of Bends | 15 |
| Tensile Strength | 650 N(143 lb) |
| ENVIRONMENTAL SPECIFICATION | |
| Storage Temperature | 55 °C~ +85 °C |
| Installation Temperature | -40 °C ~ +60 °C |
| Operating Temperature | -55 °C ~ +85 °C |
