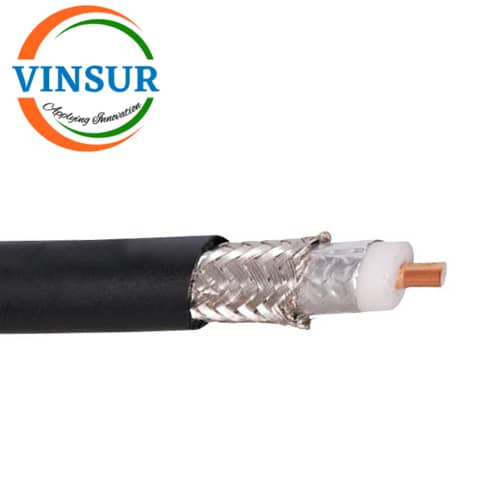

HLF 400 COAXIAL CABLE (VSW-HLF-400C)
- RF Coaxial Cable
- HLF400 Cable
Description

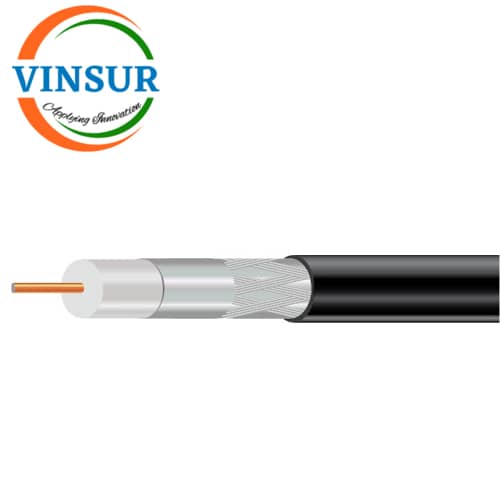

| CABLE CONSTRUCTION | Â | ||
| Description | Material | Size inch | Size mm |
| Center Conductor | Solid Copper Clad Aluminum Wire | 0.1091 inch | 2.77 mm |
| Dielectric | Foamed Polyethylene | 0.285 inch | 7.24 mm |
| Inner Shield | Sealed APA Tape | 0.292 inch | 7.42 mm |
| Outer Shield | 34AWG, 90% aluminum Braid | 0.320 inch | 8.12 mm |
| Braid Jacket | Black PE | 0.405 inch | 10.29 mm |
| ELECTRICAL SPECIFICATIONS | |
| Operation Frequency | 30 ~ 6000MHZ |
| Characteristic Impedance | 50 Ω |
| Velocity of Propagation, Nom. | 85 % |
| Capacitance, Nom. | 23.9 ㎋/kft (78.4 ㎋/㎞) |
| Inner Conductor Resistance @ 20℃ | 1.5 Ω/kft  (5.0 Ω/km) |
| Outer Conductor Resistance @ 20℃ | 1.6 Ω/kft  (5.4 Ω/km) |
| Attenuation @ 20°C |  | ||
| Frequency MHz | dB/100ft | dB/100m | Avg. Power Rating (Kw) |
| 30 MHZ | 0.67 | 2.20 | 3.33 |
| 50 MHZ | 0.88 | 2.90 | 2.57 |
| 150 MHZ | 1.52 | 5.00 | 1.47 |
| 220 MHZ | 1.86 | 6.10 | 1.20 |
| 450 MHZ | 2.71 | 8.90 | 0.83 |
| 900 MHZ | 3.90 | 12.80 | 0.58 |
| 1500 MHZ | 5.12 | 16.80 | 0.44 |
| 1800 MHZ | 5.67 | 18.60 | 0.40 |
| 2000 MHZ | 5.97 | 19.60 | 0.37 |
| 2500 MHZ | 6.77 | 22.20 | 0.33 |
| 5800 MHz | 10.82 | 35.50 | 0.21 |
